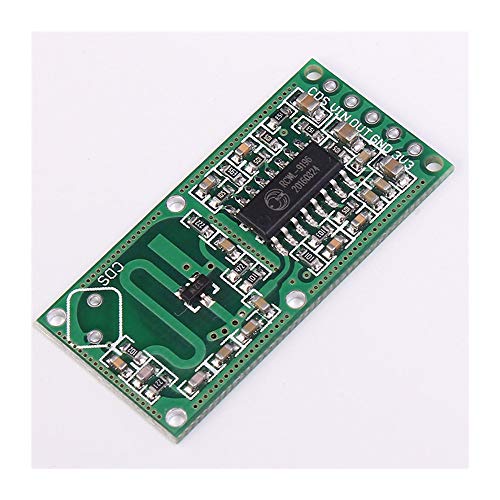

10pcs Penetrating Detection RCWL-0516 Microwave Radar Sensor Human Body Induction Switch Module Intelligent Detector 3.3V Output

Condition:New
Type:Logic ICs
Dissipation Power:none
Operating Temperature:-20~80 celsius
is_customized:Yes
Supply Voltage:4-28V
Model Number:Microwave Radar Sensor Switch
Application:Microwave Radar Sensor Switch
Product Introduction:
Operating Voltage:4-28V
Operating Current:2.8mA (typical);3mA (max)
Detection Distance:5-9m
Transmitting Power:20mW (typical);30mW (max)
Output Voltage:3.2-3.4V
Output Voltage Driving Capacity:100mA
Trigger Way:repeat trigger
Output Control Low Level:0V
Output Control High Level:3.3V
Operating Temperature:-20~80 celsius
Storage Temperature:-40~100 celsius
Adjustment Part Introduction:
C-TM
Adjust repeat trigger time,default trigger time is 2s;increasing capacitor s capacity will make repeat trigger time longer;and actual counting trigger time can operate as below:
Stick capacitor on C-TM,test 9196 3-pin frequency F,repeat trigger time T=(1/f)*32768
R-GN
Detection distance adjustment;connect with resistor and detection distance will become shorter;if not connect,detection distance is 7m;if connect with 1M ohm resistor,detection distance is 5m
R-CDS
Internal VCC parallel connect with internal 1M ohm resistor to CDS pin (that is 196 9-pin) by R-CDS ,CDS connects with photoresistor,you can close detection function at night
Notice:
The right ahead of induction side should t place any metal to block
The front/back side should reserve more than 1cm space
Module and installation carrier
Unit Type:lot (10 pieces/lot)
Package Weight:0.04kg (0.09lb.)
Package Size:15cm x 12cm x 10cm (5.91in x 4.72in x 3.94in)
