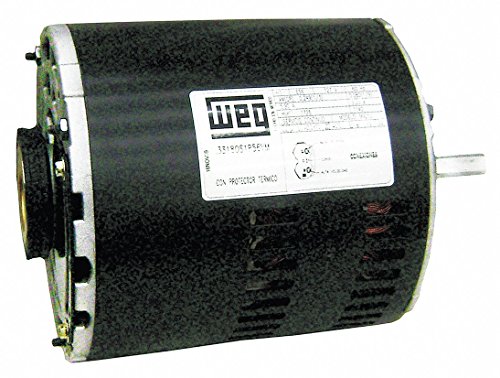

1, 1/3 HP Evaporative Cooler MotorCapacitor-Start 1725/1140 Nameplate RPM 230 Voltage 56Z Frame

Evaporative Cooler Motors
Ring dia. 2-1/2" Enclosure: open dripproof Service factor: 1.0 Insulation: Class B Max. ambient: 40°C Thermal protection: auto Bearings: ball Rotation: CWSE
Epoxy paint over a layer of zinc phosphate helps prevent corrosion. For use in evaporative coolers, exhaust fans, blowers, and air conditioning equipment.
UL Recognized.

• Item: Evaporative Cooler Motor
• Motor Application: HVAC/R
• Motor Sub Application: Evaporator Cooler
• Motor Design: Capacitor-Start
• Motor Enclosure Design: Open Dripproof
• HP: 1, 1/3
• No. of Speeds: 2
• Nameplate RPM: 1725/1140
• Frame: 56Z
• Voltage: 230
• Hz: 60
• Phase: 1
• Full Load Amps: 6.4/3.0
• Motor Mounting Type: Ring
• Motor Thermal Protection: Auto
• Ins. Class: B
• Motor Service Factor: 1.00
• Motor Bearings: Ball
• Ambient Temperature: 40°C
• Max. Ambient Temp.: 40 Degrees C
• Motor Shaft Rotation: CWSE
• Length Less Shaft: 8-21/25"
• Overall Length: 10-24/25"
• Shaft Dia.: 5/8"
• Shaft Length: 1-15/16"
• Ring Dia.: 2-1/2"
• Resilient Ring Dia.: 2-1/2"
• Ring to Ring Center: 8-7/16"
• RPM Range: 1701-1800"
